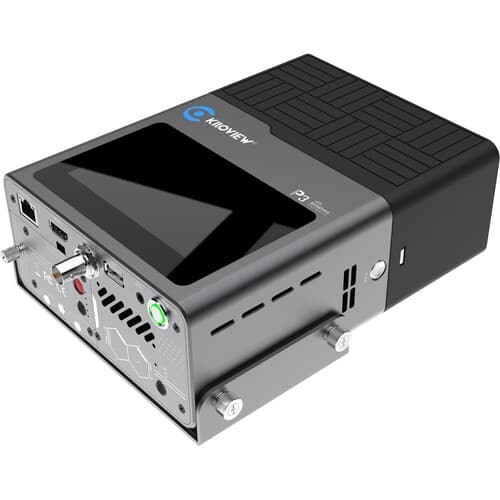

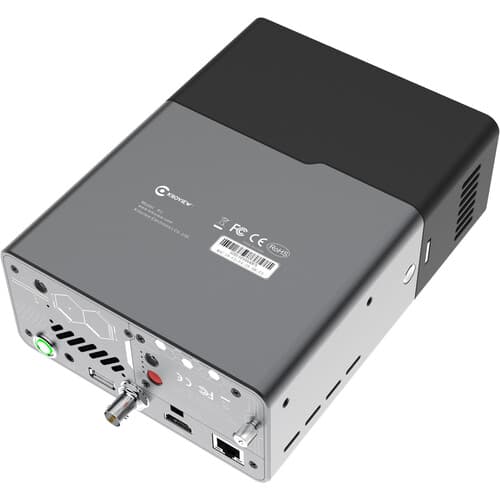

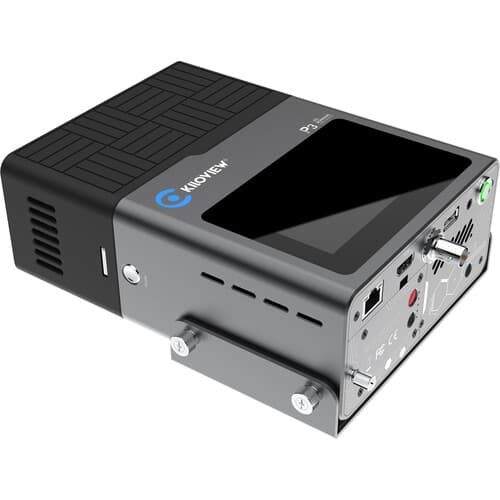

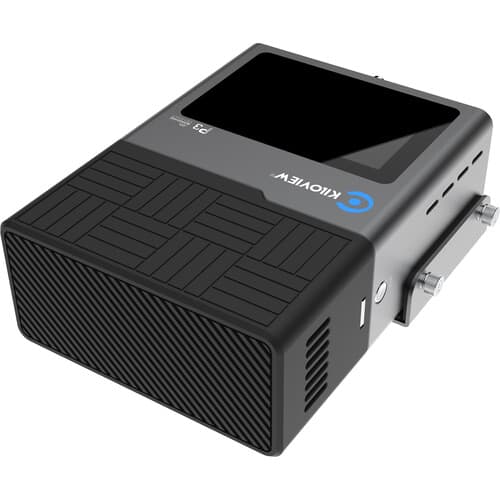

Kiloview - P3 5G Bonding Video Encoder

The Kiloview P3 5G Bonding Video Encoder is a next-generation wireless bonding encoder designed for professional live streaming in demanding outdoor and remote production environments. Built on Kiloview’s proprietary KiloLink technology, the P3 aggregates up to six network connections simultaneously—including 4-channel 5G cellular, dual-band Wi-Fi (2.4G/5G), and Gigabit Ethernet—to ensure uninterrupted, high-quality video transmission even in weak or congested network conditions.

Equipped with both 3G-SDI and 4K HDMI inputs, the P3 supports video resolutions up to 4Kp30 (HDMI) and 1080p60 (SDI) with H.265/H.264 encoding. The H.265 (HEVC) codec reduces bandwidth consumption by up to 50% compared to H.264, delivering superior image quality at lower bitrates. Paired with the permanently free KiloLink Server Pro (available as cloud-based or self-hosted), the P3 provides unlimited bonding, centralized device management, and seamless streaming to major platforms.

Key Features
1. 6-Channel Wireless Bonding for Maximum Stability

Aggregates up to six connections: 4-channel 5G cellular, dual-band Wi-Fi (2.4G/5G), and Gigabit Ethernet.

KiloLink patent-level multi-link aggregation algorithm provides adaptive load balancing, dynamic bitrate adjustment, and customizable buffer times.

Future upgradeable to support up to 10 IP connections.

Functions as a Wi-Fi hotspot for data and file transmission over 5G/4G networks.

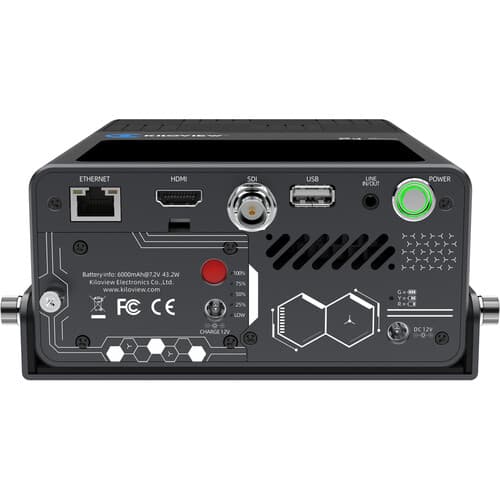

2. Dual Video Inputs with 4K Support and Advanced Encoding

1x HDMI input supporting resolutions up to 4Kp30.

1x 3G-SDI input supporting resolutions up to 1080p60.

H.265 (HEVC) and H.264 encoding; H.265 saves over 50% bandwidth compared to H.264 under similar conditions.

Configurable encoding bitrate up to 40 Mbps.

Advanced video processing: rotate/crop, custom overlays (images, text, OSD).

3. Comprehensive Streaming Protocols

Supports NDI|HX, RTMP, SRT, RTSP, HLS, WHIP, TS-UDP, and RTP.

Simultaneous streaming to multiple destinations and platforms.

Direct streaming to external platforms without a relaying server, or utilize KiloLink Server Pro for advanced bonding.

4. 4.3-Inch Touchscreen LCD for Real-Time Monitoring

Displays IP address, network status, video resolution, tally status, CPU temperature and usage.

Real-time video preview via KiloLink proprietary technology.

On-device control for quick field adjustments.

Dual-Battery System for All-Day Operation

Built-in 3500mAh battery (7.2V, 25.2W) and external 7000mAh battery (7.2V, 50.4W).

Over 4 hours of continuous operation with 4-channel 5G active; automatic switchover between internal and external batteries ensures uninterrupted power.

Supports external power via DC 12V adapter (included) and optional V-mount battery via D-Tap adapter.

Hot-swappable battery modules for zero downtime.

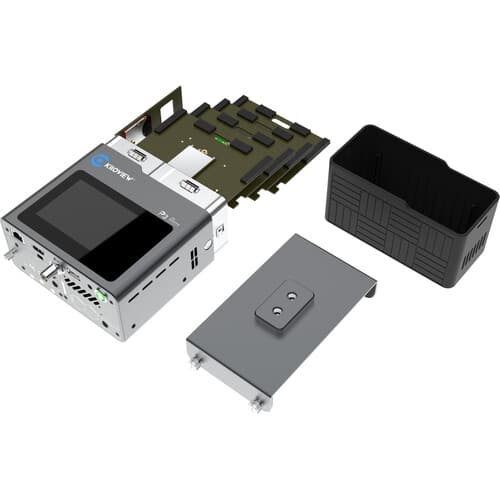

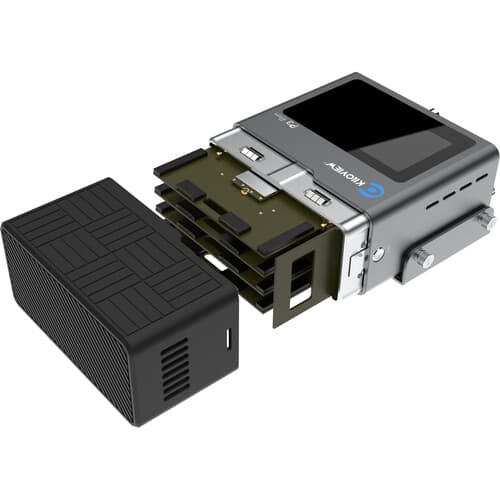

6. Modular Design for Maximum Flexibility

Choose between 5G or 4G cellular modules to match your coverage and budget.

WiFi/SD storage module included as standard.

Optional battery modules and expansion capabilities.

7. KiloLink Server Pro: Free Bonding and Management Platform

ermanently free, deployable in the cloud or on-premise.

Unlimited bonding and seamless streaming.

Centralized device monitoring, batch firmware upgrades, and rapid fault diagnostics.

Supports streaming service for P series with up to 8 channels of protocol conversion.

Use Cases
Live Sports Broadcasting: Stream high-motion events from stadiums, racetracks, or outdoor venues with bonded 5G for reliable uplinks.

News Gathering (ENG/EFP): Remote live shots from breaking news locations without relying on satellite trucks or fixed internet.

Corporate and Virtual Events: High-quality streaming from conferences, product launches, and hybrid meetings.

House of Worship: Multi-camera live streaming for services and special events.

Concerts and Festivals: Transmit musical performances from any stage with minimal latency.

Emergency and Disaster Response: First responders can stream critical video from areas with damaged infrastructure.

Drone and Mobile Production: Pair with portable cameras for dynamic on-the-go streaming.

Remote Education and Training: Broadcast lectures, workshops, or training sessions from any location.
