RED V-RAPTOR XL [X] - Câmera de Cinema 8K VV (V-Mount)

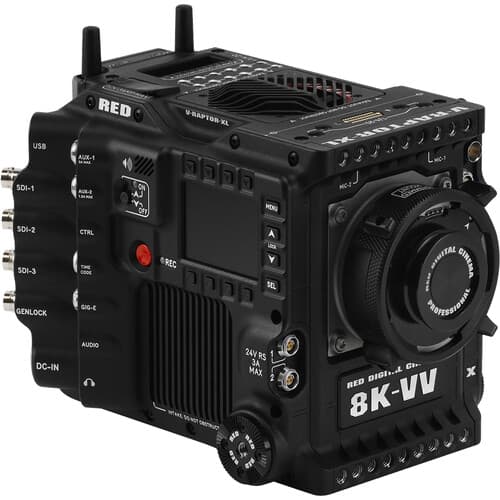

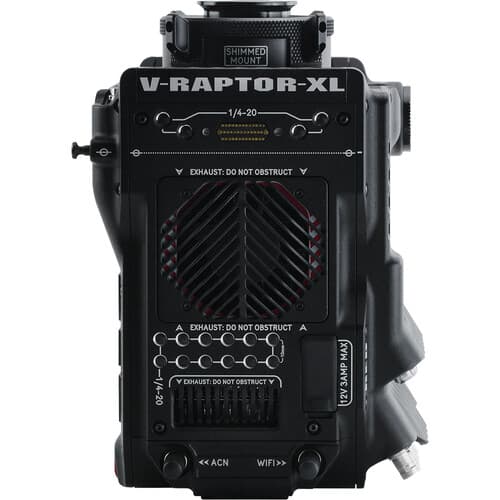

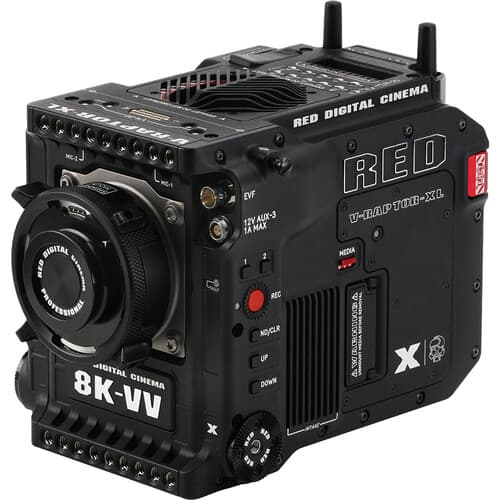

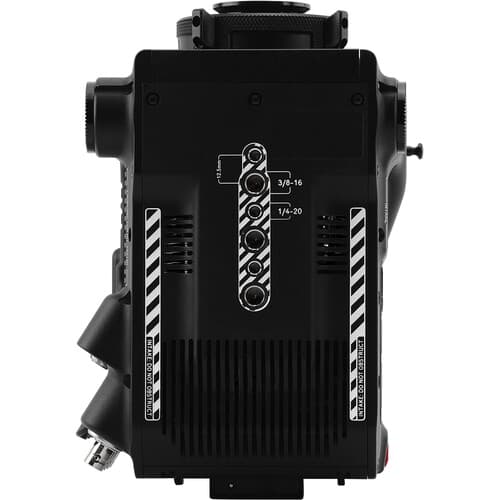

 RED V-RAPTOR XL [X] 8K VV Cinema Camera: A Comprehensive Overview

The RED V-RAPTOR XL [X] 8K VV is a groundbreaking digital cinema camera that merges the high-resolution, high-frame-rate performance of the V-RAPTOR line with the global shutter advancements of the KOMODO series. Designed as a powerful all-purpose workhorse, it is built for high-end motion picture and television productions. With its large format 8K VV global shutter sensor, the camera delivers unparalleled image quality, exceptional dynamic range, and advanced features like an internal Electronic ND system, making it a top choice for cinematographers demanding both flexibility and power in a robust, production-ready XL body.

Key Features & Specifications:

8K VV Global Shutter Sensor: Features a 35.4MP global shutter CMOS sensor, eliminating rolling shutter distortion and allowing faithful capture of fast motion and flashes without artifacts. The sensor has a resolution of 8192 x 4320 and a diagonal of 46.31 mm .

Exceptional Dynamic Range: Offers 17+ stops of dynamic range, with the RED Global Vision's "Extended Highlights" mode extending this further to capture more color and detail in extreme highlights, benefiting both HDR and SDR finishes .

High-Frame-Rate Recording: Capable of recording at up to 120 fps at 8K 17:9 and up to 600 fps at 2K 2.4:1 in REDCODE RAW, providing immense flexibility for slow-motion capture .

Internal Electronic ND System: Includes a motorized, precision-controlled electronic ND filter system with a density range of 2 to 7 stops, selectable in 1/4, 1/3, or 1-stop increments for ultimate exposure and depth-of-field control .

Dual Codec Recording: Captures 16-bit REDCODE RAW for maximum flexibility, and can also record directly to ProRes 4444 XQ, 4444, 422 HQ, 422, and 422 LT up to 4K 120p .

Advanced Virtual Production Tools: The "Phantom Track" feature, part of the RED Global Vision suite, allows for the simultaneous capture of distinct R3D clips for different sub-frame slices (e.g., final pixel and green screen), streamlining virtual production workflows .

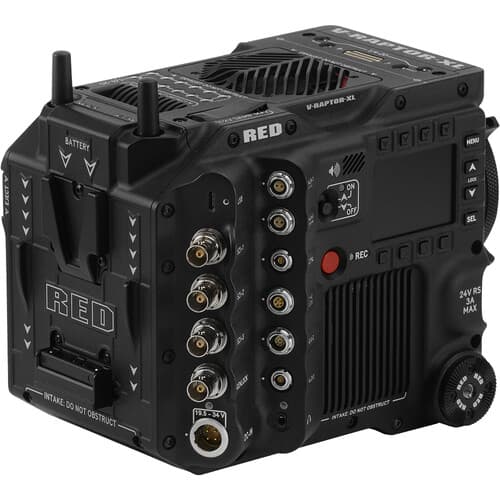

Robust Connectivity and Power: Features a comprehensive I/O array with four SDI outputs, wireless timecode/genlock/camera control, and dual-voltage battery support (14V/26V V-Lock). It also provides multiple 12V and 24V auxiliary power outputs to run peripherals directly from the camera.

Use Cases:
The V-RAPTOR XL [X] is engineered for a wide range of professional applications.

High-End Film and TV Drama: Its 8K resolution, high dynamic range, and robust XL body make it ideal for large-scale cinematic productions.

Virtual Production: With its global shutter, Phantom Track, and genlock capabilities, it integrates seamlessly into LED volume workflows.

Live Broadcasting: RED Connect technology enables live 8K R3D streaming over IP or 4K over SMPTE ST 2110.

Run-and-Gun and Documentary: The internal ND, improved in-camera audio performance, and autofocus with face detection support single-system audio setups and fast-paced shooting
